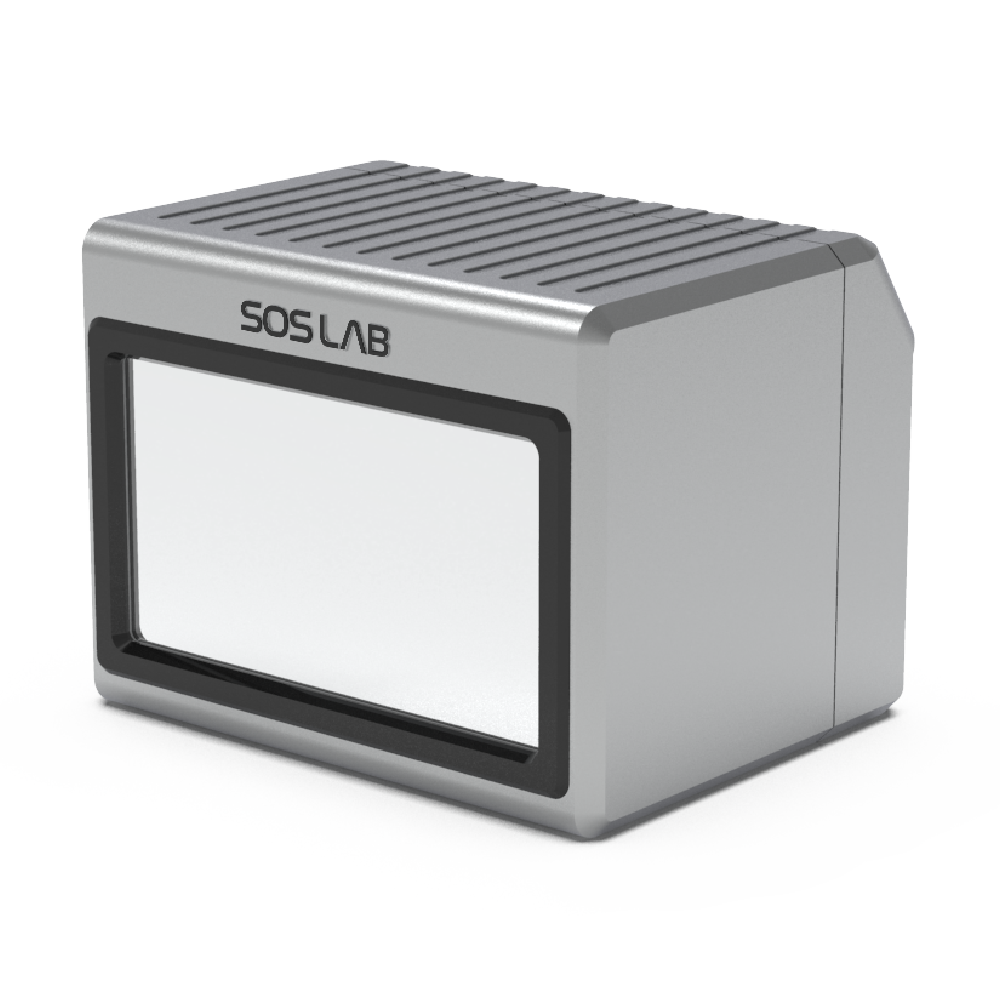

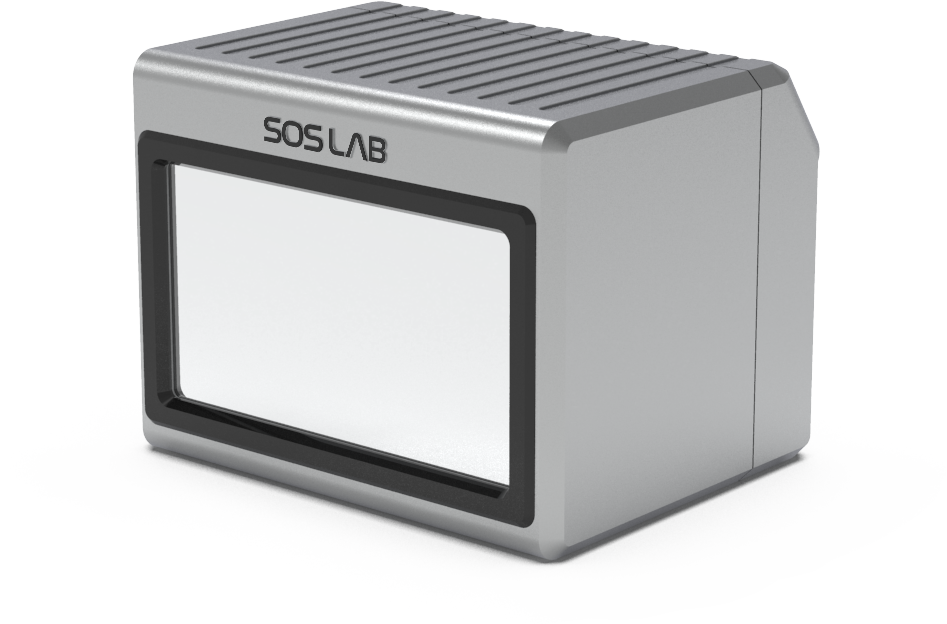

SL-1 Surveilance & Smart City

Universal High-resolution 3D LiDAR. SL-1 is applied own invented 'MEMS-Hybrid' system architecture

for powerful performance; range, resolution, durability.

SL-1  Surveilance & Smart City

Universal High-resolution 3D LiDAR.


SL-1 is applied own invented 'MEMS-Hybrid' system architecture

for powerful performance; range, resolution, durability.

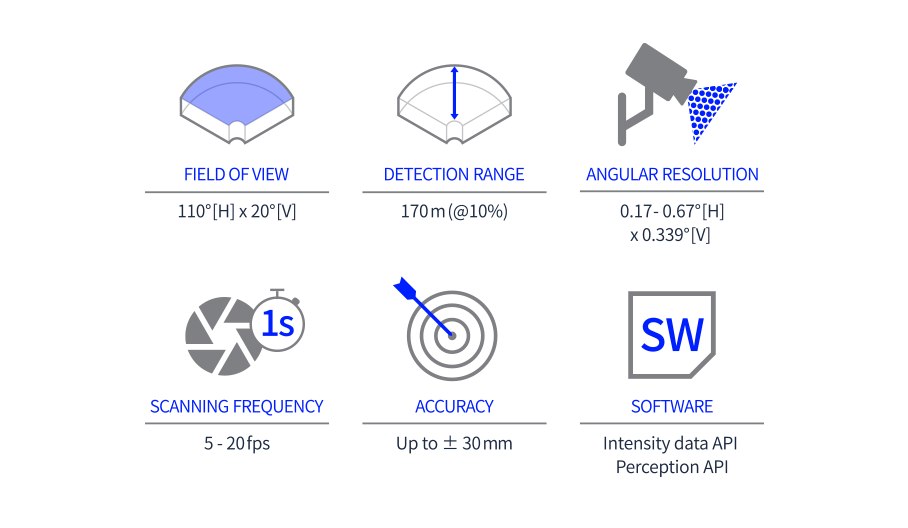

Specifications

Detection Range

Up to 170m

Field of View

110˚  [H] X 20˚  [V]

Repeated Accuracy

<±3cm

Angular Resolution

0.17-0.67˚  [H] ] X 0.21˚  [V]

Sampling Frequency

5 - 25 Hz

Environmental Con.

IP67, 69K

* LiDAR Application S/W(2020)

Classification

Tracking

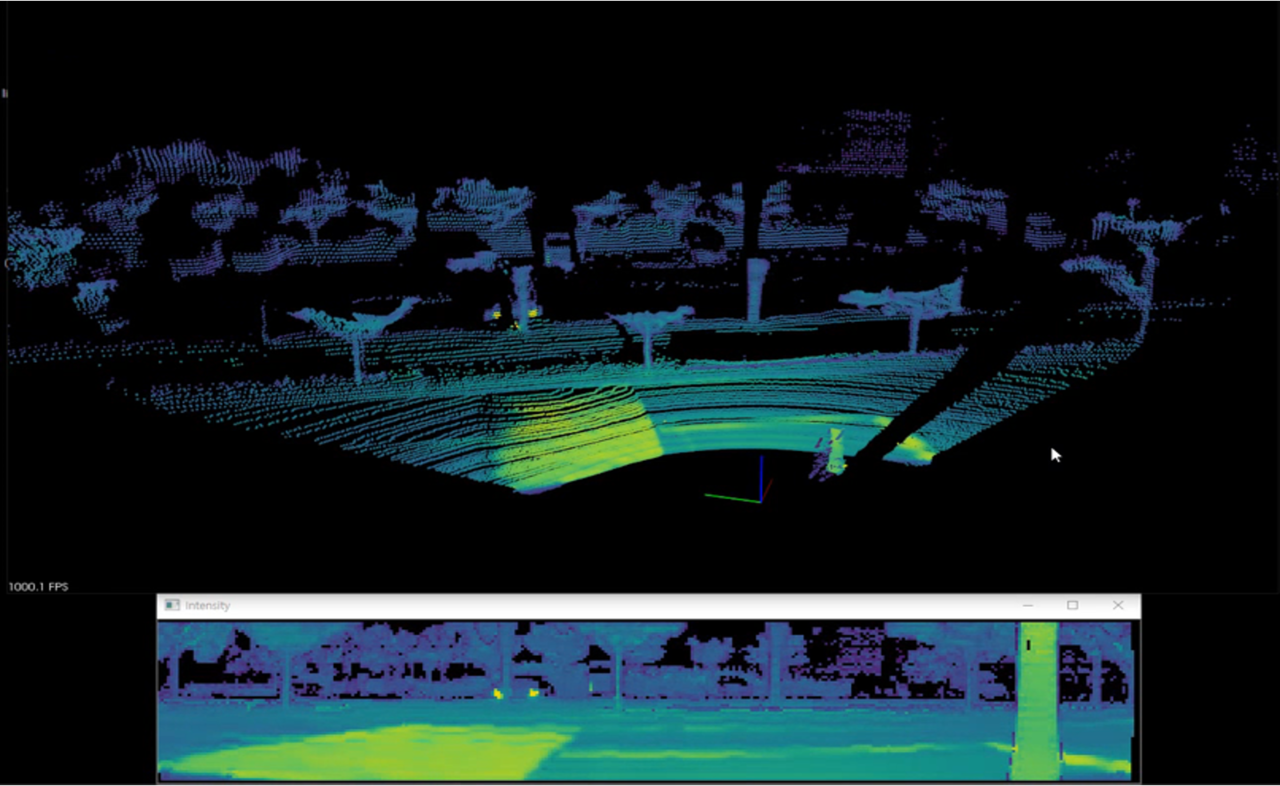

Intensity Map

: Multi-Sensor Module / Intensity data API / Perception API will be provided

High performance

at a low price!

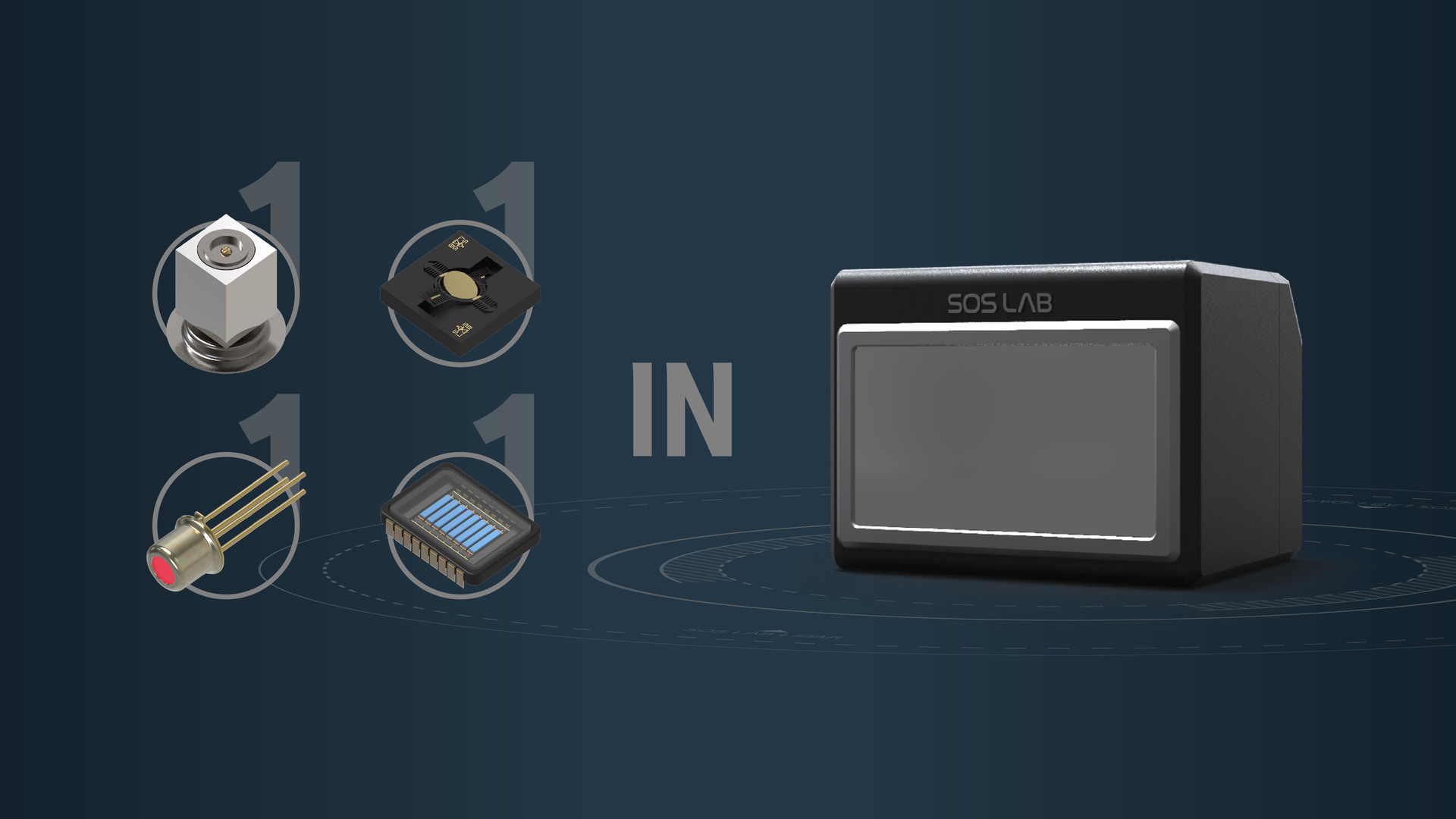

SL-1 uses only one laser source. Also, it consisted of only a single EEL, a 1D array APD, a 1-axis MEMS mirror, a compact mirror scanner. The fewer parts make a LiDAR sensor cheaper. Meet the SL-1 sample only for $8,000.

Applications

Smart City

& Surveillance

Test & Research

for Self-driving

SL-1 is being used in smart infrastructure solutions to increase security by detecting the movement of objects in specific areas and warning them as they come close to the area.

SL-1 is suitable when high-resolution 3D LiDAR is required for self-driving research. It is used for research on self-driving technology as it has a lower price and superior performance compared to other companies' LiDAR is used for research on self-driving technologies.

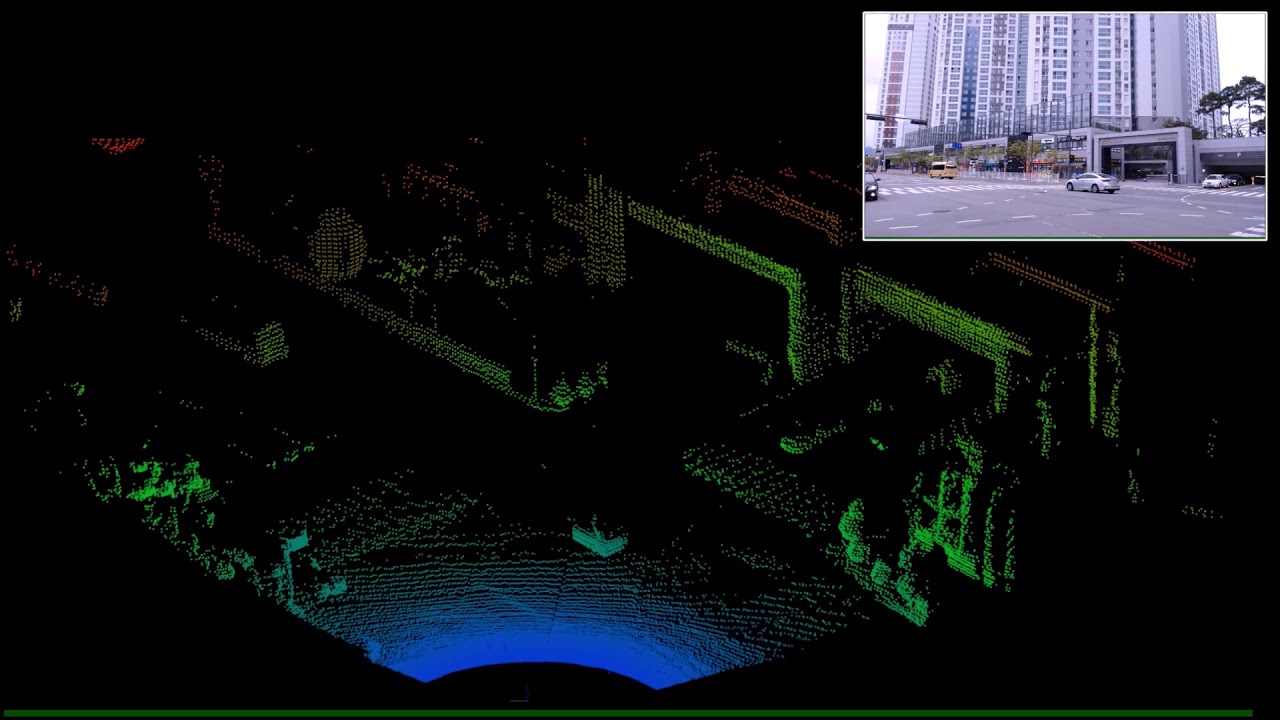

High-Resolution LiDAR with rapid data acquisition.

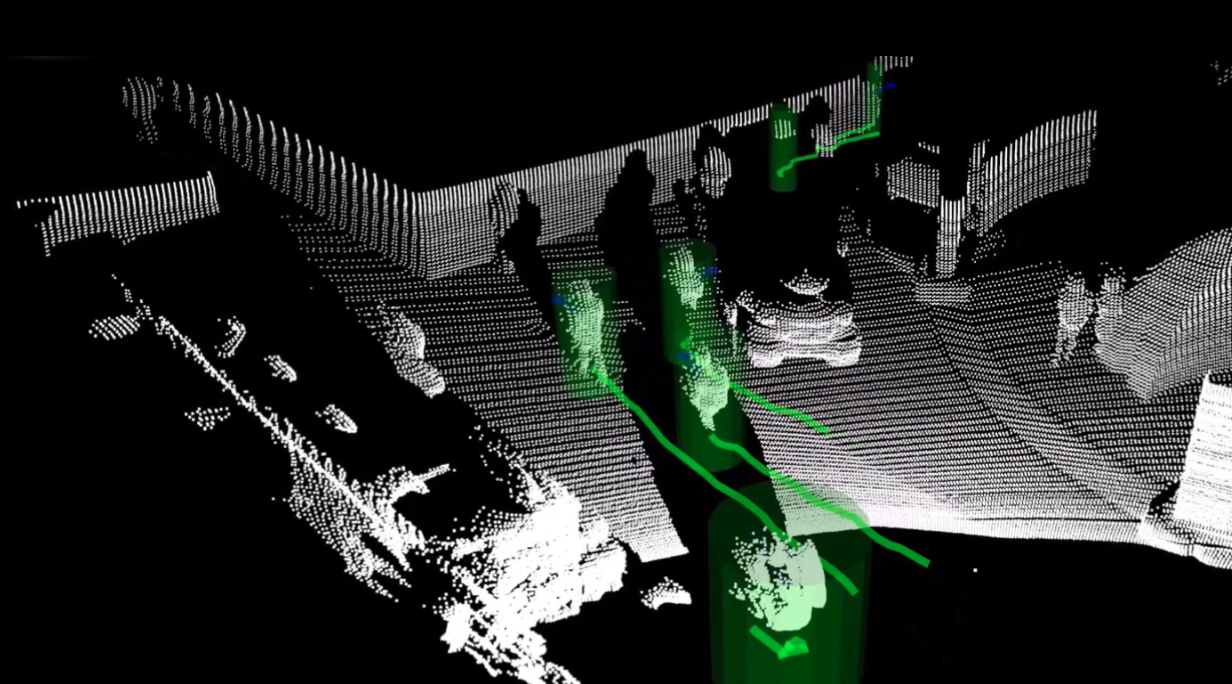

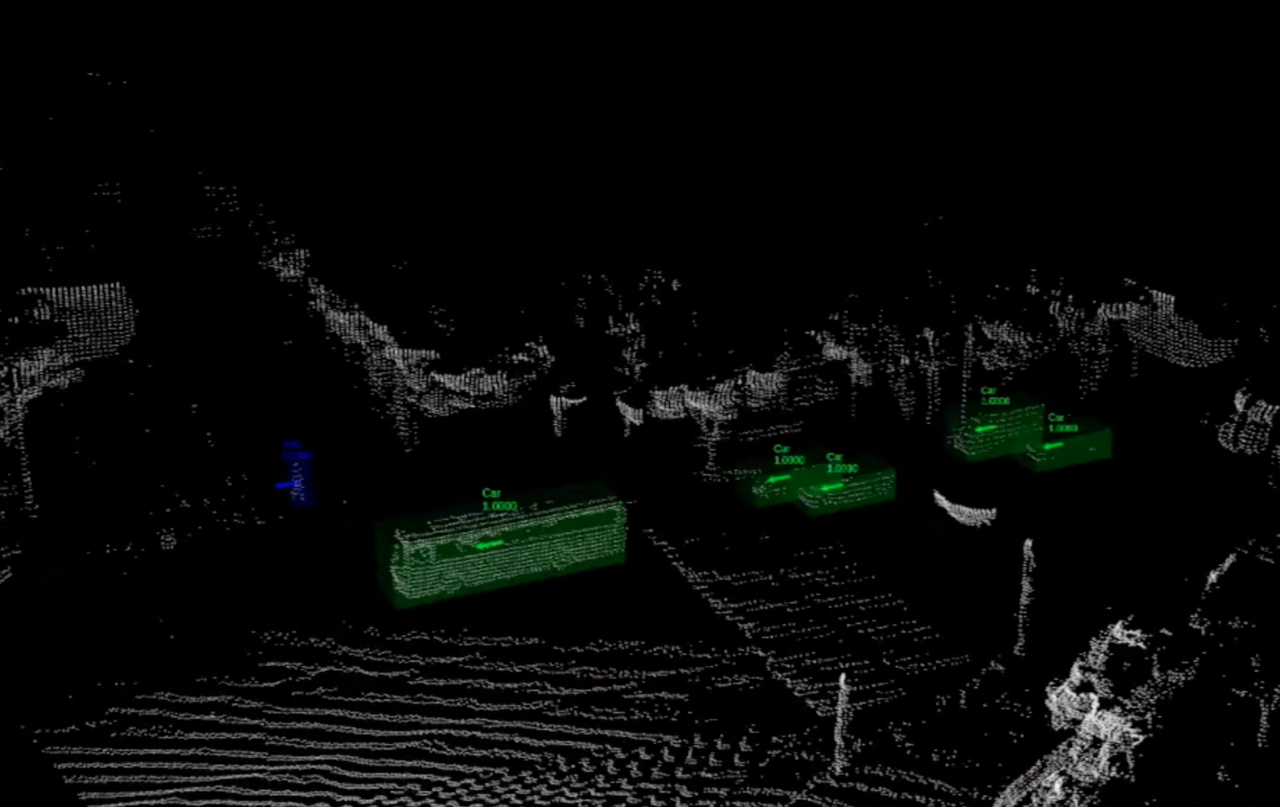

High-resolution point cloud data is definitely useful for object detection, tracking, and even classification.

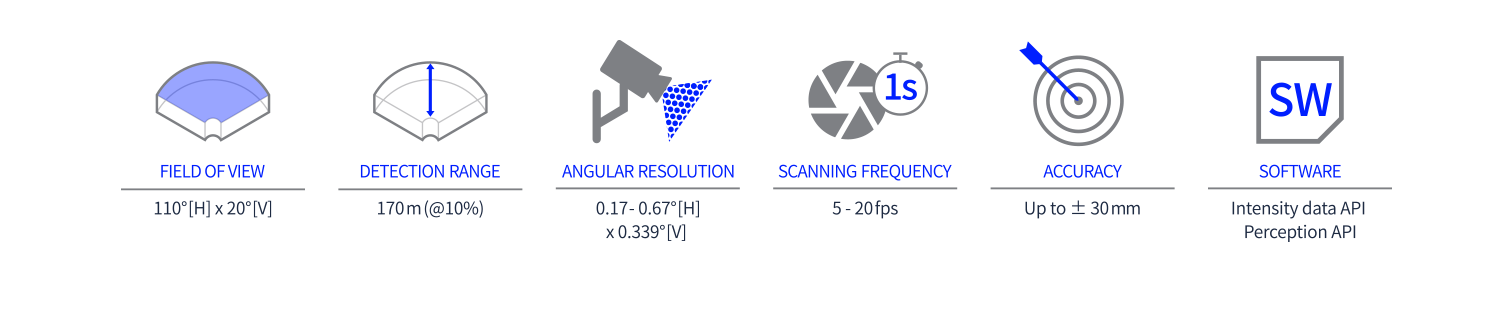

Specifications

Detection Range

Up to 170 m

Field of View

110˚  [H] X 20˚  [V]

Repeated Accuracy

<±3cm

Angular Resolution

0.17-0.67˚  [H] X 0.21˚  [V]

Sampling Frequency

5 - 25 Hz

Environmental Con.

IP67, 69K

* LiDAR Application S/W(2020)

: Multi-Sensor Module / Intensity data API / Perception API will be provided

High performance

at a low price!

SL-1 uses only one laser source. Also, it consisted of only a single EEL, a 1D array APD, a 1-axis MEMS mirror, a compact mirror scanner. The fewer parts make a LiDAR sensor cheaper. Meet the SL-1 sample only for $8,000.

Applications

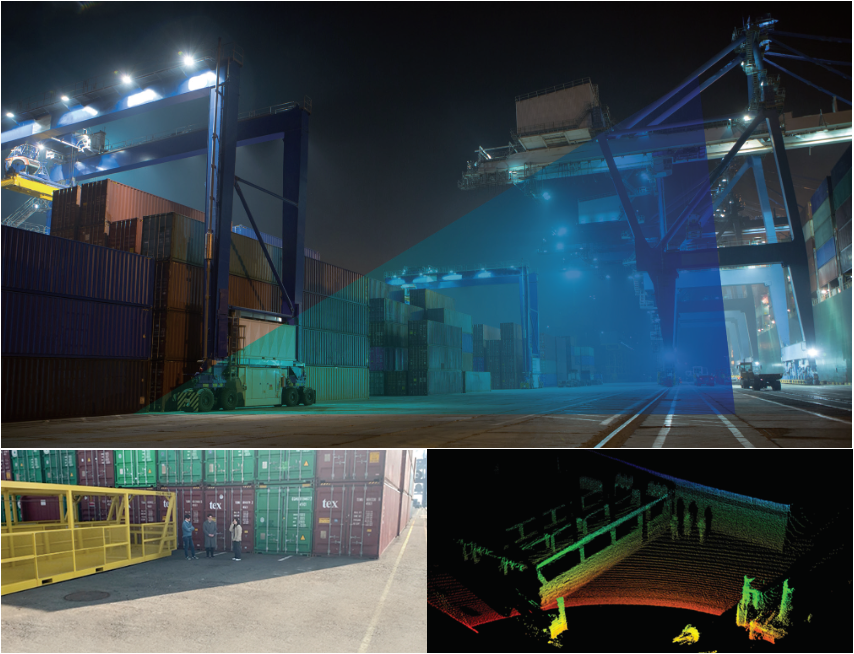

Smart City & Surveillance

SL-1 is being used in smart infrastructure solutions to increase security by detecting the movement of objects in specific areas and warning them as they come close to the area.

Test & Research for Self-driving

SL-1 is suitable when high-resolution 3D LiDAR is required for self-driving research. It is used for research on self-driving technology as it has a lower price and superior performance compared to other companies' LiDAR is used for research on self-driving technologies.

High-Resolution LiDAR

with rapid data acquisition.

High-resolution point cloud data is definitely useful for object detection, tracking, and even classification.

Make your system much smarter!

Make your system much smarter!
